Disc Brush Edition
With its cutting-edge technology and unparalleled cleaning performance, the TN70 is the ultimate solution for all your cleaning needs. At the heart of its exceptional capabilities lies its unique 20” single giant brush, designed to consistently deliver immaculate results.
Cylindrical Brush Edition
Redefining Industrial Floor Care Efficiency.
The Sparkoz TN70 Pro CB combines high-performance sweeping and scrubbing in a single autonomous pass—eliminating the need for two separate machines.
Powerful Cleaning Performance
Equipped with a high-performance cleaning system, Sparkoz TN70 autonomously tackles dirt, dust and debris – consistently delivering immaculate results.
Advanced Navigation Technology
Sparkoz TN70 utilizes cutting-edge navigation algorithms for precise movement and mapping, ensuring thorough and efficient cleaning in various environments.
Intelligent Obstacle Detection
With intelligent sensors and algorithms, Sparkoz TN70 detects and navigates around obstacles seamlessly, minimizing disruptionsand ensuring safe operation.

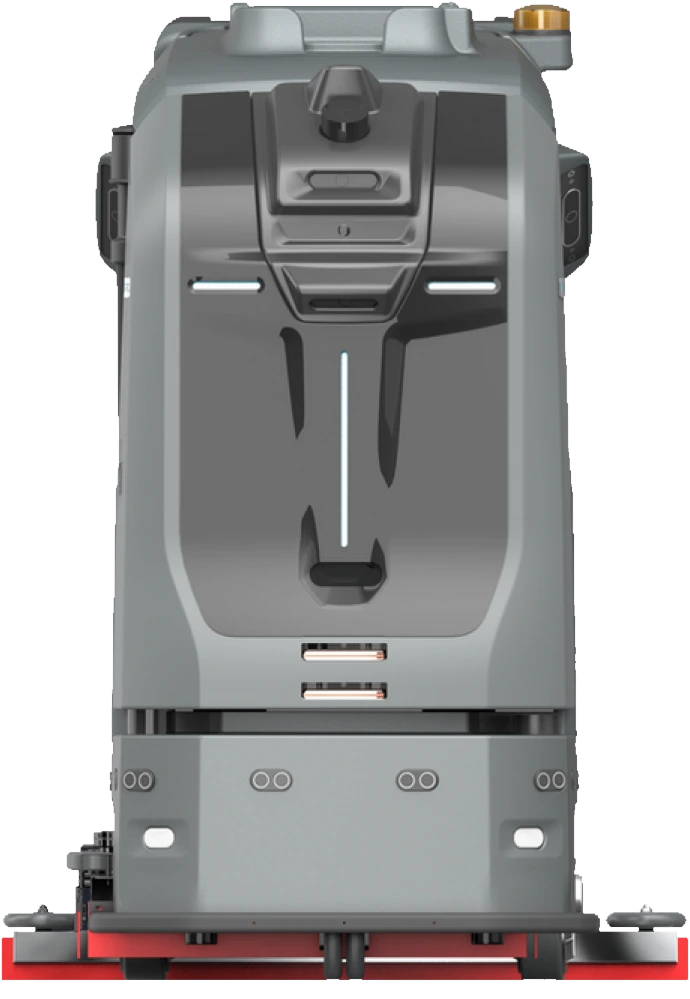

TN10-PRO Front

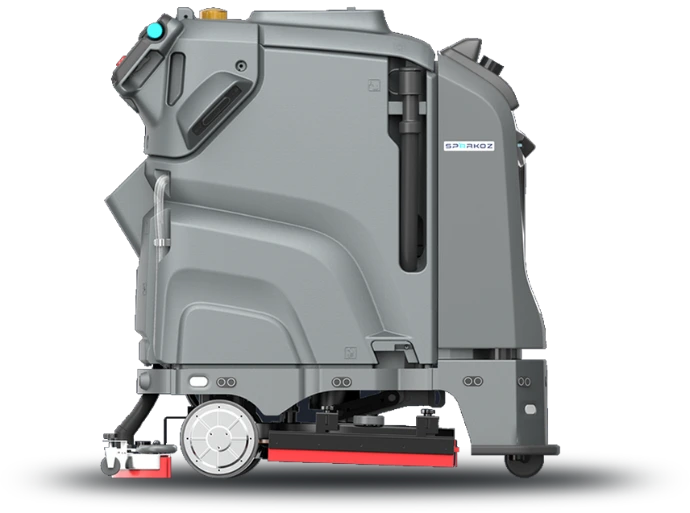

TN10-PRO Side

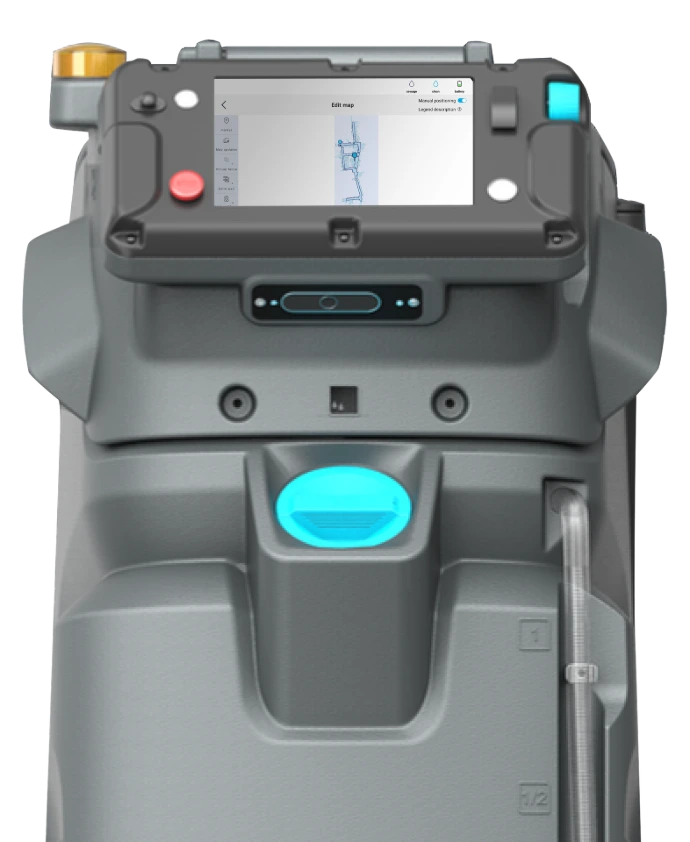

TN10-PRO Interface
Suitable Industries
Retail & Supermarket
Health Care
Workspace
Manufacturing
Education
Transportation
User-Friendly Interface

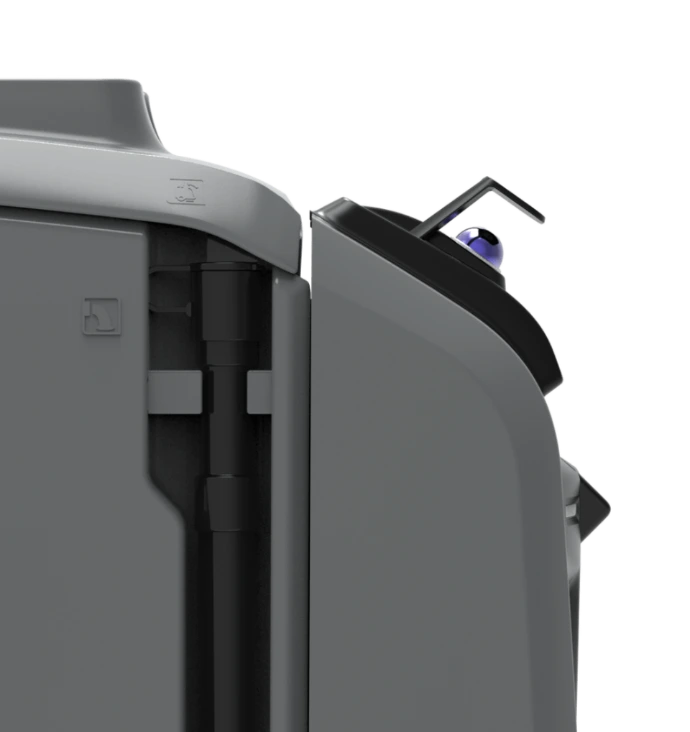

Smarter Cleaning with 3D LiDAR Technology
The newly upgraded TN70-Pro integrates advanced 3D LiDAR for complete environmental awareness and reliable performance in dynamic settings.

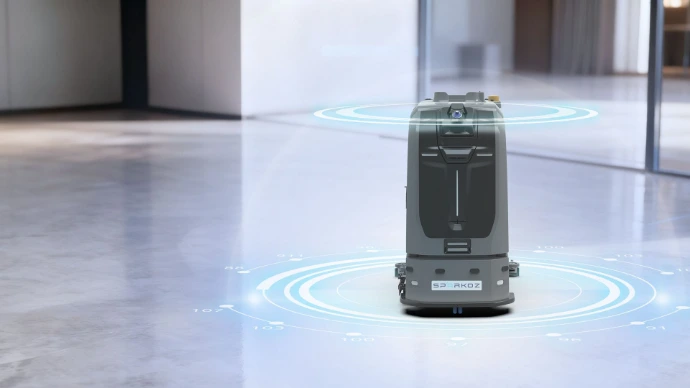

360° Full Coverage
Ultra-wide FOV for accurate 3D perception and safe obstacle avoidance

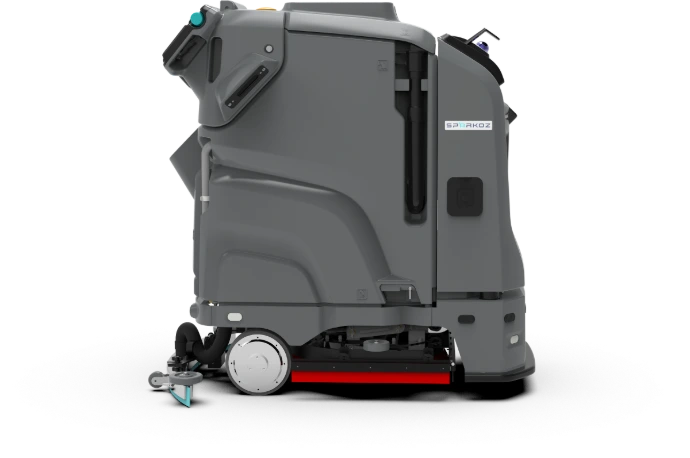

Reliable in All Conditions
Reliable operation in complex environments, minimizing positioning loss
Built for Dynamic Environments - Optimized for logistics and warehouses, handles busy environments with ease
Technical Specifications
TN70-PRO | |
Product Dimensions (L × W × H) | 45.7” * 22.8” * 47.6” 116 cm * 58 cm * 121 cm |
Battery | DC 25.6 V | 120 Ah / 100 Ah |
Charging Options | Charging Dock / Workstation / Manual Charger |
Battery Run-Time | 3.6 h Scrub | 12 h DustMop |
Brush Cleaning Width | 20” (51 cm) |
Squeegee Assembly Width | 32” (81 cm) |
Gross Weight | 439 lbs (199 kg) (without water) |
Climbing Ability | 6 % |
Max Cleaning Efficiency | 21,960 ft²/h (2040 m²/h) |
Cleaning Part Distance To Side | <9.8” (25 cm) |
Quiet Operation | <65 dB (A) |
Solution Tank Volume | 18.5 gal (70 L) |
Recovery Tank Volume | 13.2 gal (50 L) |
Trash Bin Capacity | 0.26 gal (1 L) |
Ground Pressure | 60 lbs (27 kg) | 0.19 psi (13.2 g/cm²) |
Maximum Velocity | 2.68 mph (1.2 m/s) |
Disinfect Fogger | Optional, 6.5 liter, 1.2 liter/hour |
Operating Temperature | 0°C – 40°C ( 32°F – 104°F ) |
Sensors | IMU / Electronic Bumper Strip / Ultrasonic Sensors / 2D-Lidar Liquid Level Sensor/ 3D Depth Camera |
