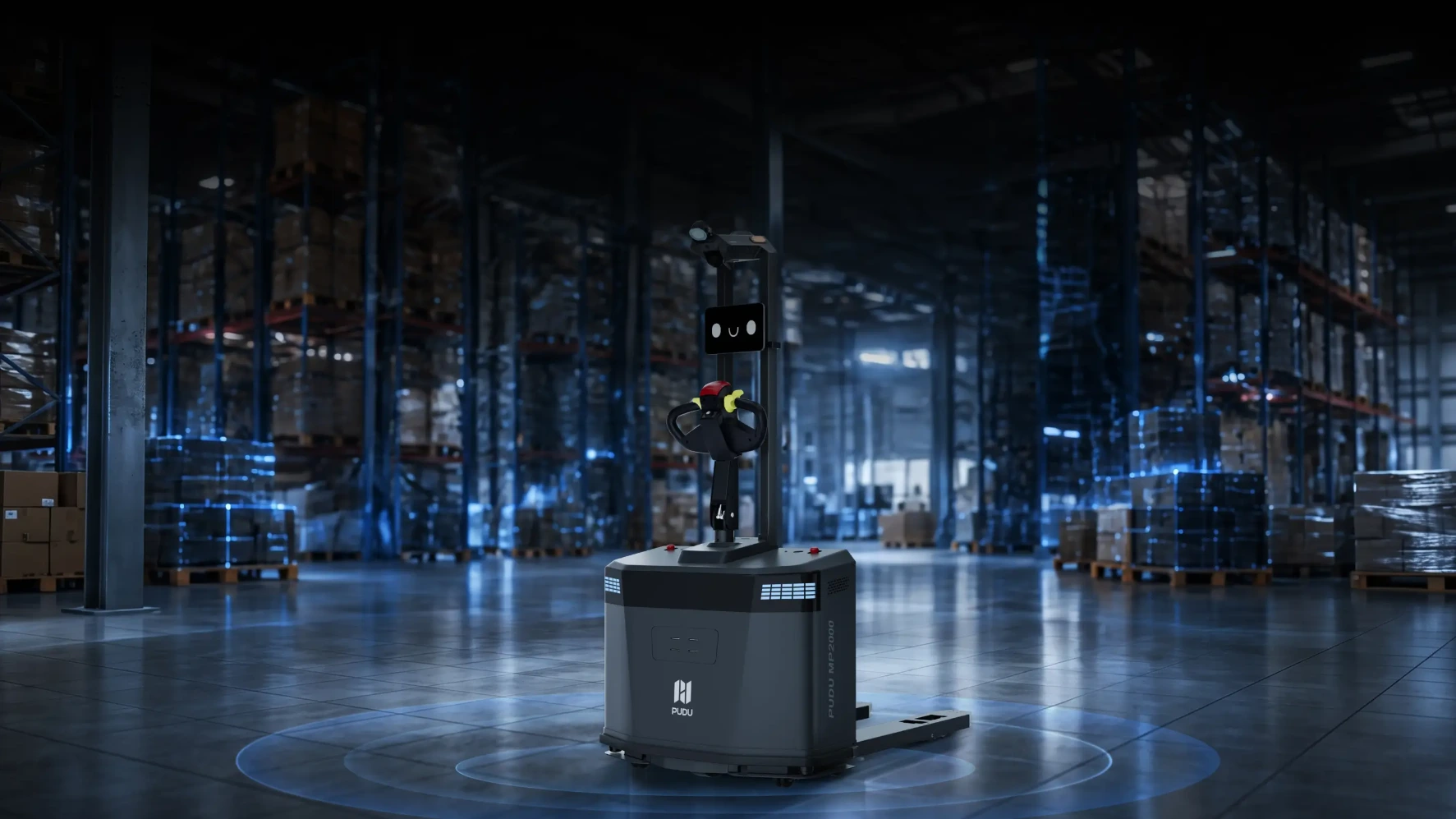

PUDU MP2000 Series
AI-Native Pallet Handling Robot
Suitable for: Manufacturing, Warehouses, Distribution Centres, Factories & Logistics Facilities.
Plug-and-Play
AI-Native Autonomy
Fleet Orchestration
Omni-Sense Safety
20s Fork Insertion
IoT Integration
Plug-and-Play, Rapid Deployment
Powered by multi-sensor navigation and edge intelligence, the robot requires no site modifications, platform integration, or complex deployment. Fast site mapping and configuration shorten deployment cycles and accelerate time to value.
AI-Native Intelligence, Autonomous Operations
AI-native intelligence enables storage occupancy detection, load-carrier recognition, and clearance assessment for autonomous operation in dynamic warehouses. This reduces manual checks, site modifications, and commissioning.

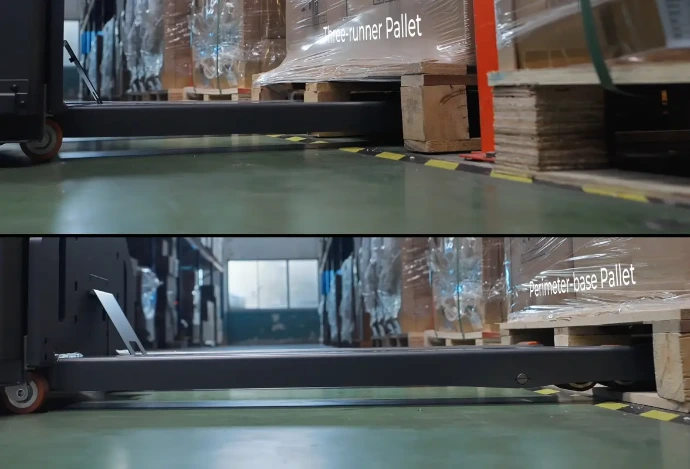

AI Load Carrier Recognition
Supports standard three-runner pallet and perimeter-base pallet while automatically learning to recognize non-standard load carriers for precise fork engagement and stable transport.
Compatible with Three-Runner and Perimeter-Base Pallets

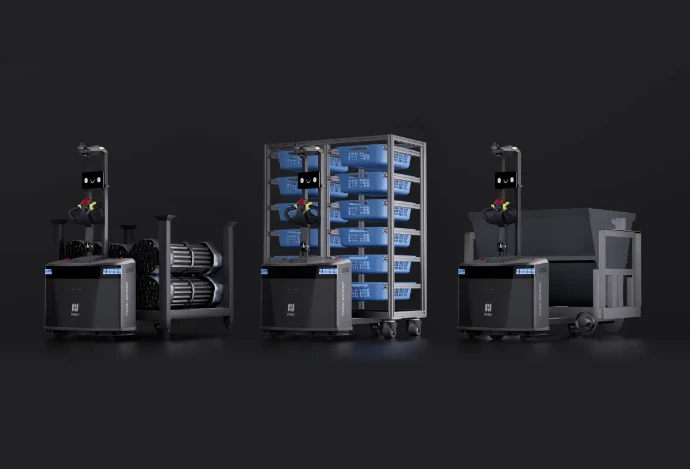

Compatible with Non-Standard Load Carriers
AI Storage Detection, Seamless Pallet Handling
Detects storage-location occupancy and pallet positions, then selects the right target and plans the route for each pick or drop—completing the handling cycle without manual confirmation.
Adaptive Alignment, Precise Fork Engagement
Automatically adapts to manually placed pallets offset by up to 15 cm and angled by up to 15°, minimizing manual intervention for reliable operation in complex environments.

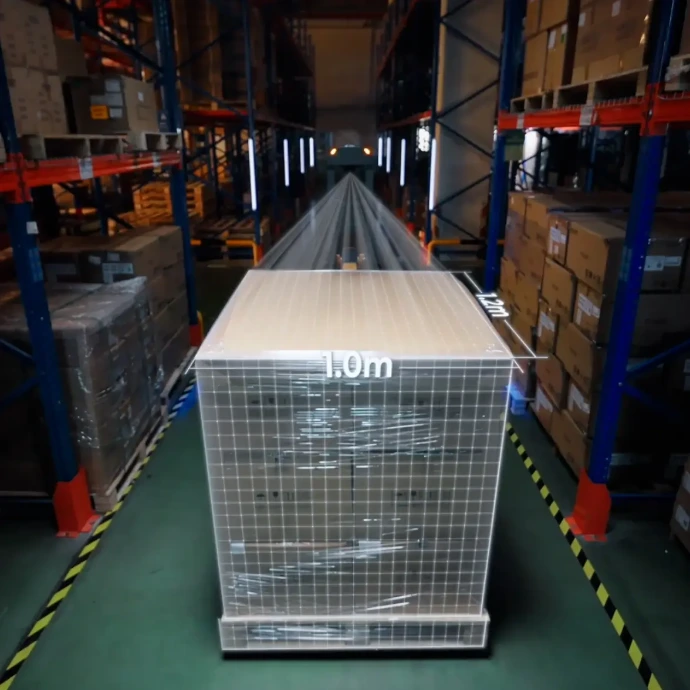

Intelligent Clearance Assessment
Detects load dimensions and contours to calculate the space required for safe passage in real time. Handles thresholds up to 10 mm and gaps up to 35 mm in complex environments.
Intelligent Fleet Orchestration
Distributed fleet orchestration enables each robot to make decisions and plan routes, with inter-robot communication ensuring efficient coordination. Even offline, the fleet continues operating in sync.

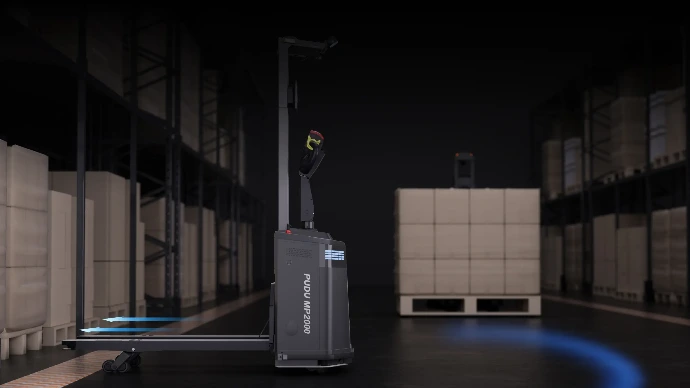

20s Fork Insertion, Fast Pickup
With fork insertion completed in 20 seconds and speeds up to 1.6 m/s unloaded and 1.2 m/s loaded, the robot reduces cycle times and accelerates material flow for higher throughput.

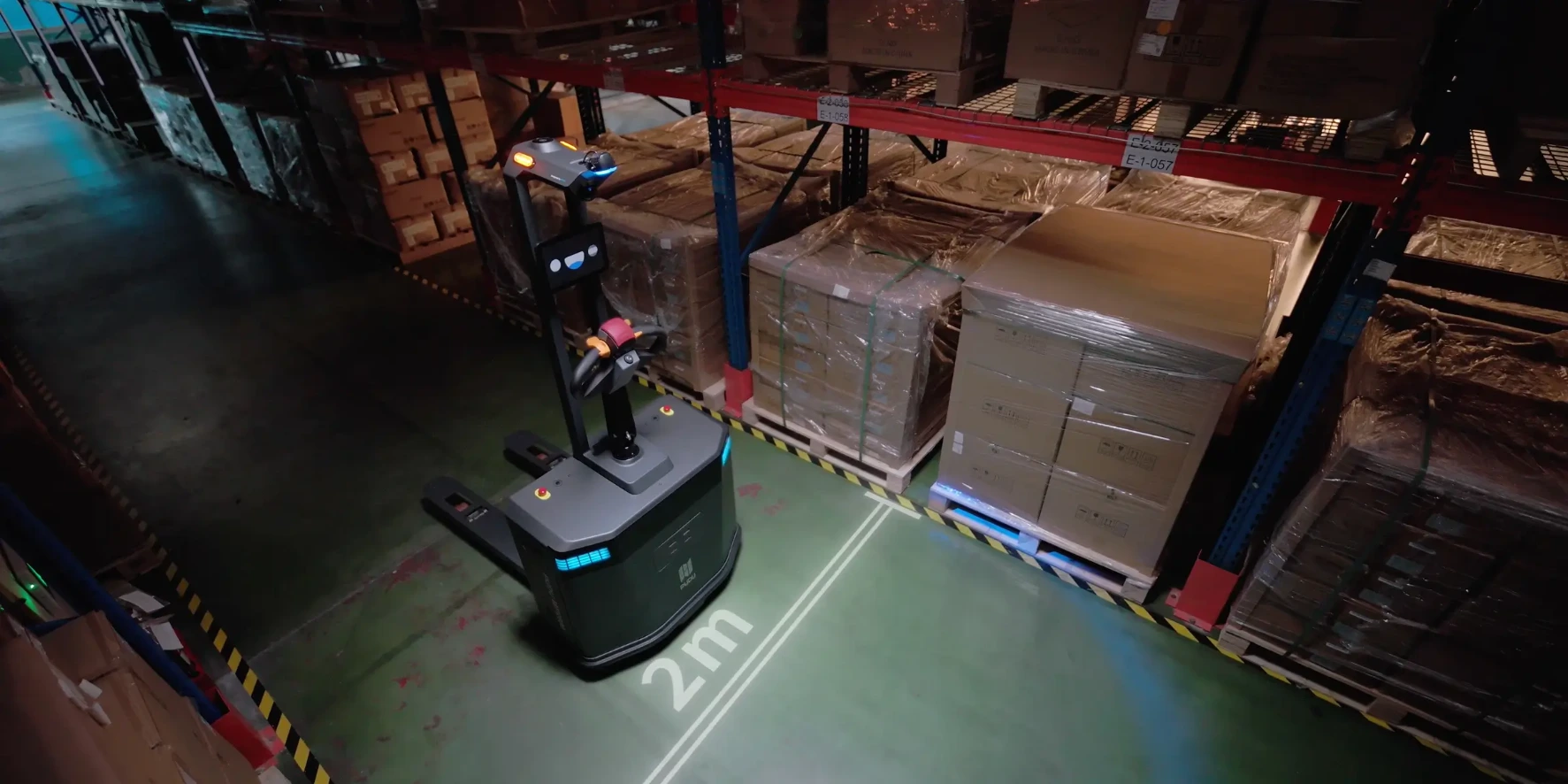

More Storage in Narrow Aisles
Handles 90° pallet pickup in aisles as narrow as 2 m, with pallet spacing down to 15 cm. Maximizes storage space and supports business growth without facility expansion.
Omni-Sense Safety
Depth cameras, 3D LiDAR, and other sensors form a multi-layer safety system that detects people, equipment, and obstacles in real time. Even in complex mixed-traffic environments, it identifies risks, avoids hazards, and issues clear warnings.

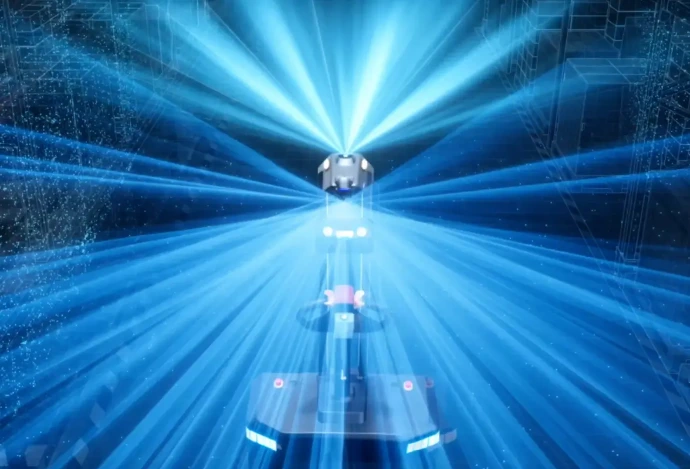

360° Perception for Safer Navigation

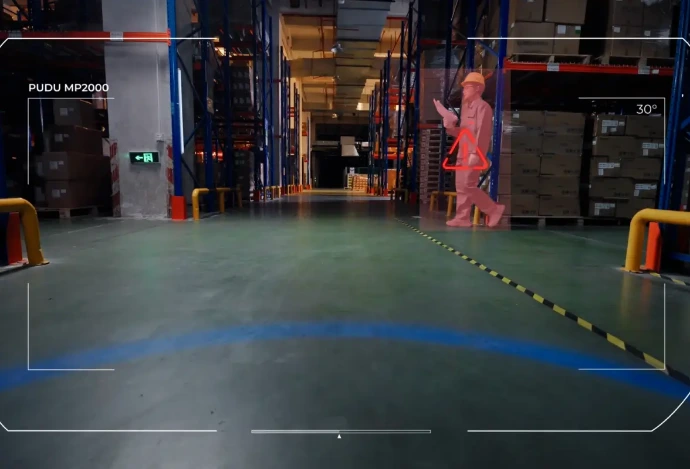

Dynamic Obstacles, Intelligent Avoidance and Stop

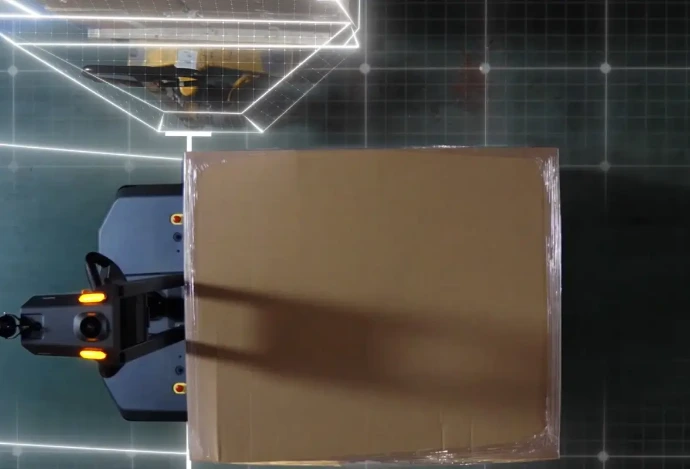

Static Obststacles, Autonomous Rerouting

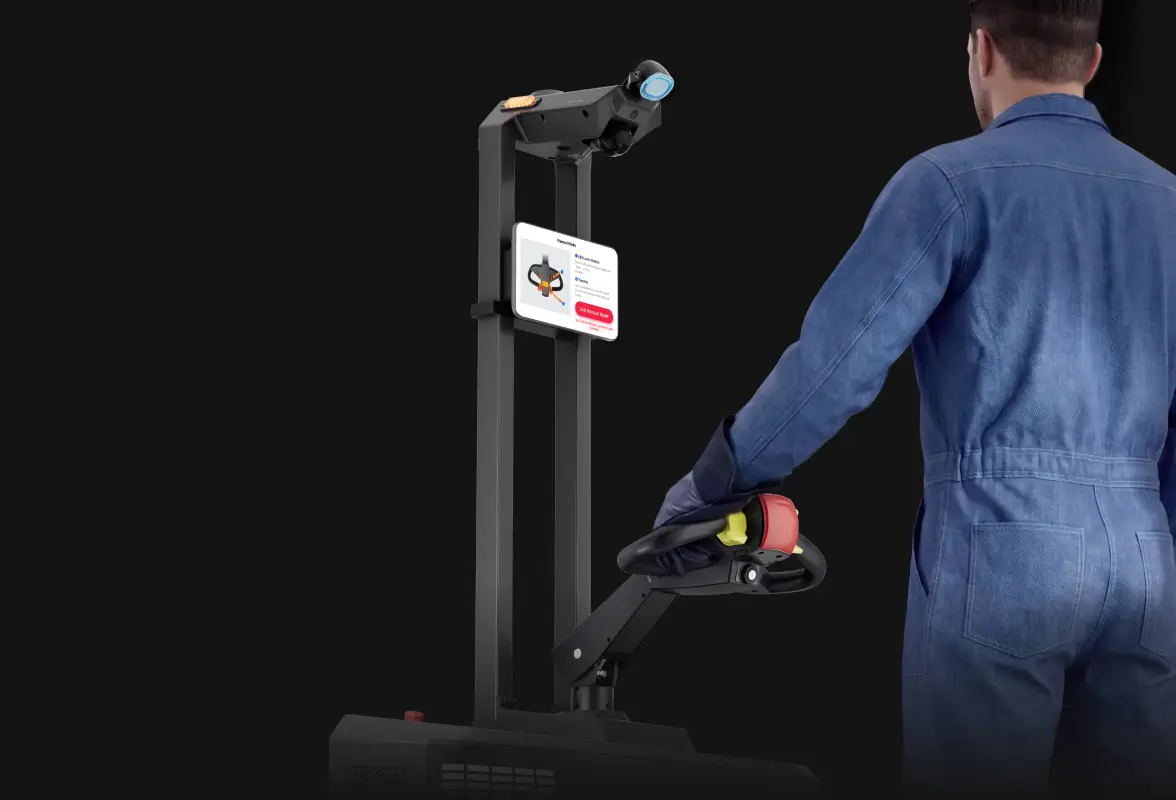

Flexible Dual-Mode Operation
Seamlessly switches between autonomous and manual modes, handling routine tasks independently while allowing operator assistance when needed for reliable, continuous operations.
IoT Integration & Control
Tasks can be dispatched via PUDU Link, APIs, voice commands, or task buttons. Optional integration with elevator controls, automatic doors, and other IoT devices enables flexible task triggering and device coordination.
PUDU MP2000 Core Applications
Powering material flow at critical touchpoints

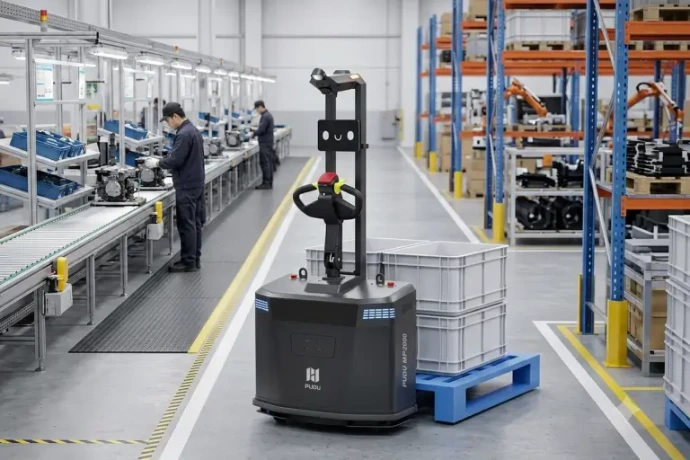

Manufacturing
Line-Side Material Delivery

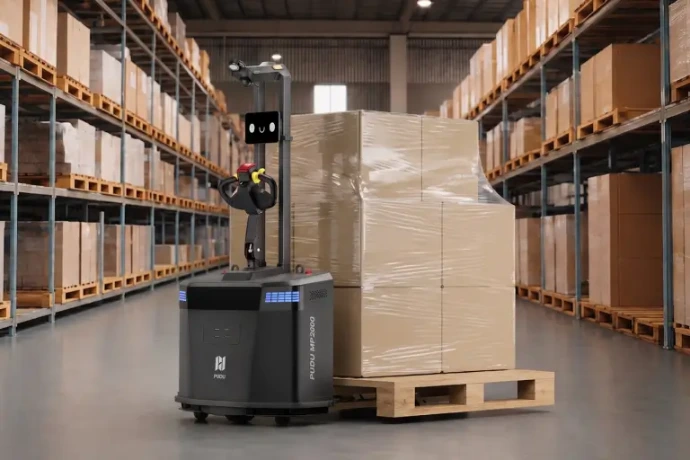

Warehousing
Pallet Handling

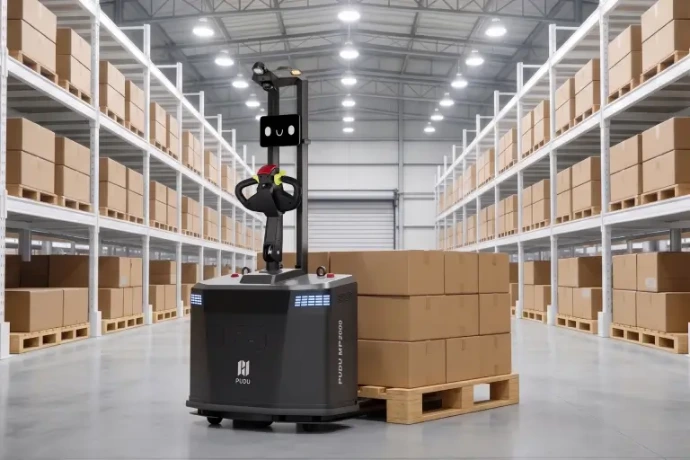

Logistics
Distribution Center Transfer
Technical Specifications
MP2000 Standard Version | MP2000 Narrow Fork | |
Model | MPID01-M | MPID01-N |
Overall dimensions | 1585 x 910 x 1870 mm（62.40 x 35.83 x 73.62 inches） | 1585 x 910 x 1870 mm（62.40 x 35.83 x 73.62 inches） |
Charging Time | About 2 h, input voltage 200V~240VacAbout 3.2h, input voltage 100V~120Vac | About 2 h, input voltage 200V~240VacAbout 3.2h, input voltage 100V~120Vac |
Battery life | 12 h (None load)6 h (Max. load) | 12 h (None load)6 h (Max. load) |
Maximum load | 2000 kg（4409.25 lbs） | 2000 kg（4409.25 lbs） |
Max. lift height | 200±5 mm（7.87±0.20 inches） | 200±5 mm（7.87±0.20 inches） |
Lowered fork height | 80±5 mm（3.15±0.20 inches） | 80±5 mm（3.15±0.20 inches） |
Navigation | 3D LiDAR-SLAM, VSLAM | 3D LiDAR-SLAM, VSLAM |
Fork outer width | 60cm(23.6 in) | 60cm(23.6 in) |
Max. surmountable height/gap | 10 mm（0.39 inch 35 mm（1.38 inches） | 10 mm（0.39 inch 35 mm（1.38 inches） |
Gradeability | 3°/ 8° (Full Load/Unloaded) | 3°/ 8° (Full Load/Unloaded) |
Right-angle stacking aisle width | ≤2000 mm, 1200*1000 mm Pallet (1200 along forks) (≤78.74 inches, 48*40 inches Pallet (48 along forks) )≤1960 mm, 1200*800 mm Pallet (1200 along forks)(≤77.17 inches, 48*31.5 inches Pallet (48 along forks)) | ≤2000 mm, 1200*1000 mm Pallet (1200 along forks) ≤1960 mm, 1200*800 mm Pallet (1200 along forks)≤78.74 inches, 48*40 inches Pallet (48 along forks) ≤77.17 inches, 48*31.5 inches Pallet (48 along forks) |
