Rapid Deployment in 1 Hour
Precision Navigation & Stability
Aerospace-Grade Unibody Design
Intuitive Operation
Adaptability in Complex Environments
24/7 Continuous Operation
Rapid Deployment in 1 Hour
No site modification required. Onboard mapping with multi-robot self-networking—no local servers or network deployment. True plug-and-play industrial robotics.

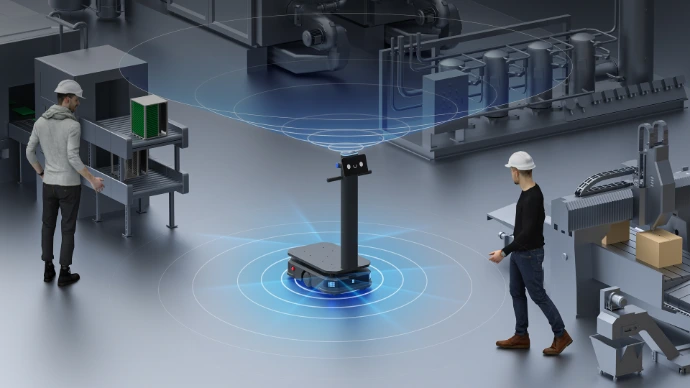

Precision Navigation & Stability
VSLAM + LiDAR localization enables real-time adaptation to dynamic environments, delivering precise positioning and stable operation in complex conditions for uninterrupted production.

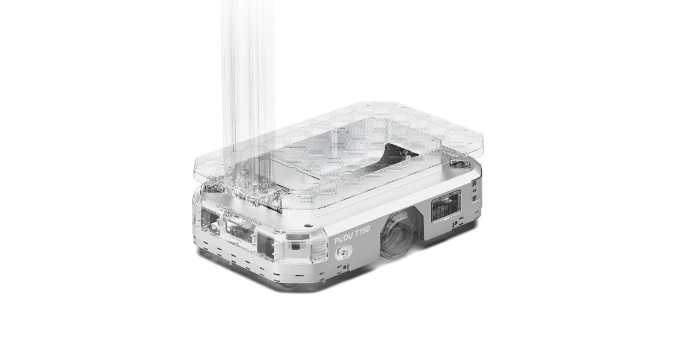

Aerospace-Grade Unibody Design
High-strength aerospace materials and unibody design ensure superior impact resistance. Built for intensive duty cycles, it guarantees 5 years of reliable, high-efficiency operation.

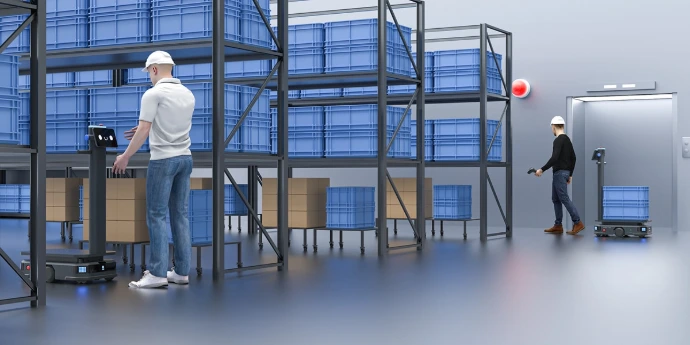

Intuitive Operation, Use It Instantly

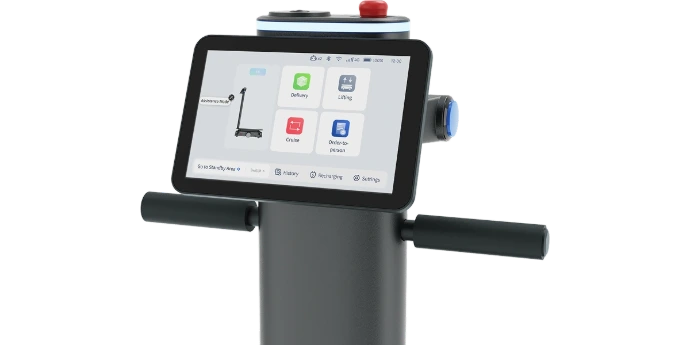

The T150 features an onboard touchscreen powered by a proprietary OS for direct task dispatching, mode switching, and configuration, supporting button pagers, PUDU Link, and API integration for intuitive, efficient operation.

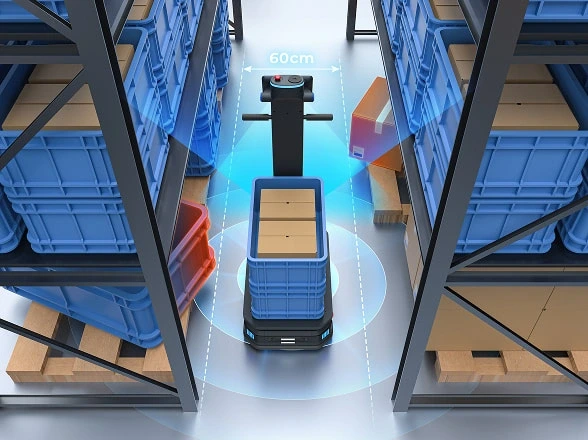

Stable Navigation in Narrow Aisle

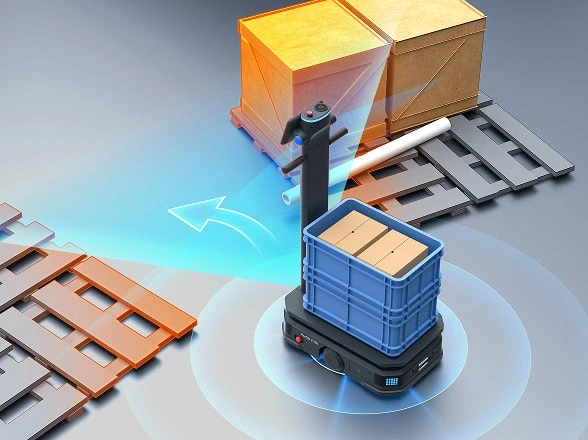

Flexible Operation in Non-Standard Pathways

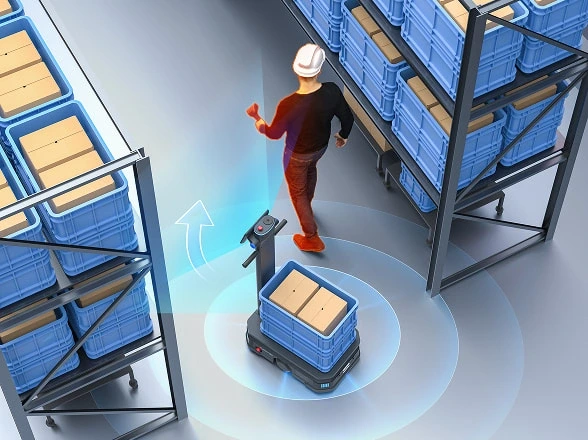

Safe Operation in Mixed Human-Robot Traffic

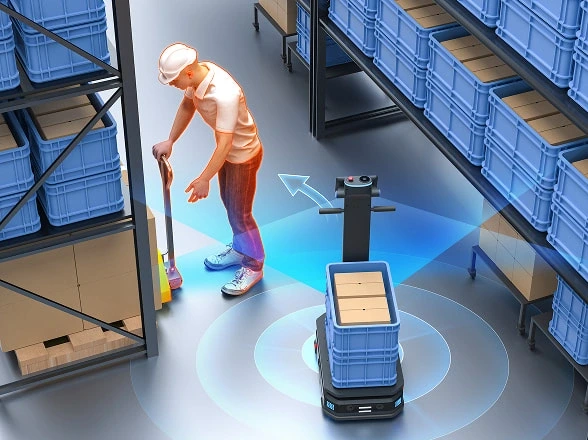

Rapid Obstacle Avoidance in Confined Passageways
24/7 Continuous Operation
With rapid battery swapping, auto-charging, and wired power options, the T150 delivers 24/7 uptime. This flexible power ecosystem optimizes factory throughput and maximizes production ROI.

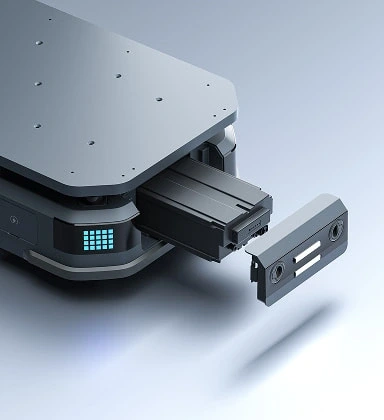

Rapid Battery Swapping

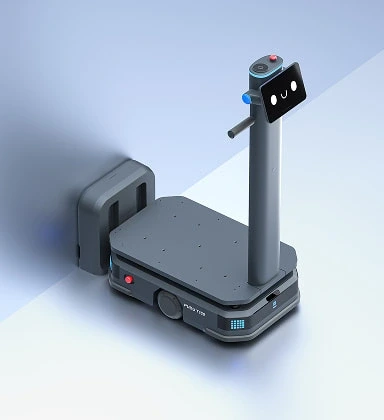

Automatic Charging

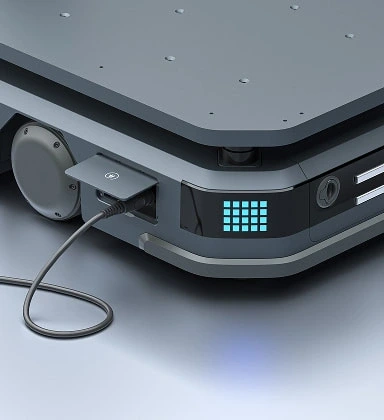

Wired Charging
Technical Specifications
T150 Lifting | T150 Standard | |
Battery Capacity | 30 AH | 30 AH |
Charging Time | 2h(0%-90%) | 2h(0%-90%) |
Run-time | 12 H (none load) | 12 H (none load) |
Maximum load | 150KG(330.7 lbs) | 150KG(330.7 lbs) |
Weight | 81KG(178.57lbs) | 65KG(143.4lbs) |
Dimensions | 835mm×500mm×1350mm(32.8 in × 19.7 in × 53.1 in) | 835mm×500mm×1350mm(32.8 in × 19.7 in × 53.1 in) |
Navigation | VSLAM + LiDAR | VSLAM + LiDAR |
Cruising Speed | 0.1~1.2 m/s(0.66~3.94 ft/s) | 0.1~1.2 m/s(0.66~3.94 ft/s) |
Min. Path Clearance | 60cm(23.6 in) | 60cm(23.6 in) |
Step-Climbing Capability | 20 mm(0.79 in) | 20 mm(0.79 in) |
Gap-Crossing Capability | 35 mm(1.38 in) | 35 mm(1.38 in) |
Operating Environment | 0°C ~ 40°C(32°F ~ 104°F) | 0°C ~ 40°C(32°F ~ 104°F) |
