The PUDU T600 is a heavy-payload industrial delivery robot designed for moving large payloads. Centered around a robust mobile chassis, it features a touch screen and handle for user-friendly operation. Features: Equipped with a built-in screen, it can be operated directly without a central control system. Includes a power-assist switch, quick-access buttons, and front indicator lights for easy and efficient use.
The PUDU T600 Underride Version is a chassis-based industrial delivery robot. With a low-profile design, it can navigate beneath racks and lift them autonomously for material handling. Features: Compact form allows it to travel underneath rack units, enabling flexible navigation. Capable of lifting cargo from the center underneath, requiring minimal path clearance.

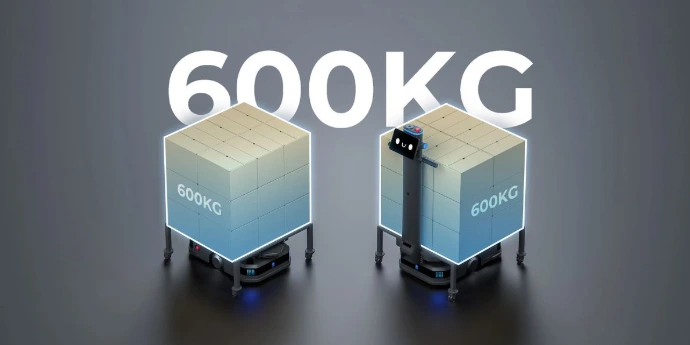

600 KG Payload Capacity
With a 600 KG payload capacity, the T600 series is built for heavy-payload material transport, greatly reducing delivery frequency and improving efficiency per trip.

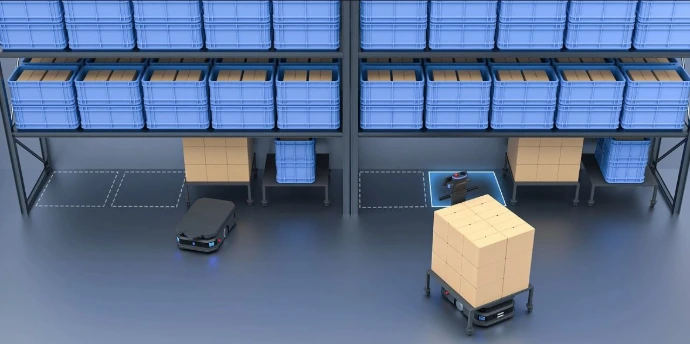

Rack Group Recognition
Powered by advanced navigation and perception systems, the T600 series intelligently identifies target storage locations and autonomously performs pick-and-place operations. This enables fully unmanned workflows, ensuring efficient and reliable warehouse operations.

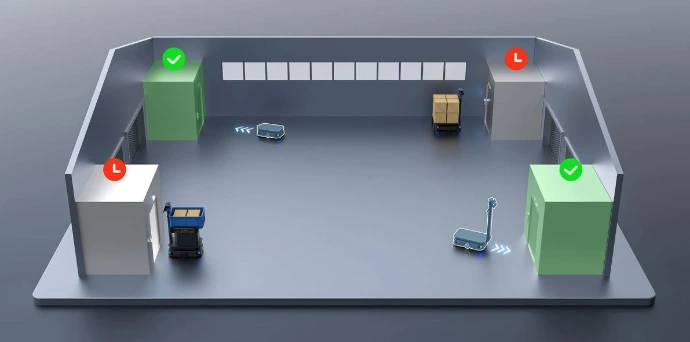

Idle Elevator Priority Scheduling
In busy multi-elevator scenarios, the system intelligently calls idle elevators first. The smart scheduling algorithm monitors elevator status in real time, prioritizing available elevators to avoid peak-time congestion and resource waste, significantly improving cross-floor delivery efficiency.

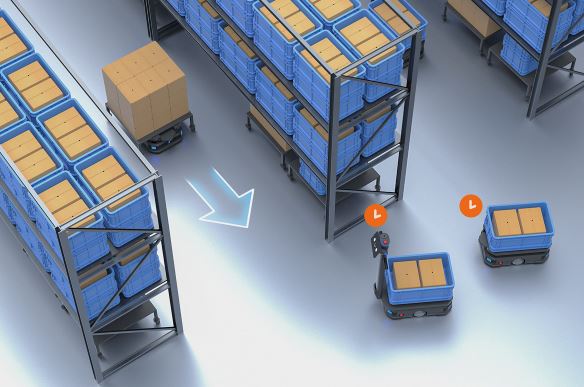

Narrow Aisle Intelligent Traffic Strategy
Based on path width and the robotsโ real-time load dimensions, the system intelligently determines whether to apply single-lane or dual-lane traffic modes. It dynamically adjusts routing strategies to maximize space utilization and improve multi-robot coordination efficiency in narrow environments.

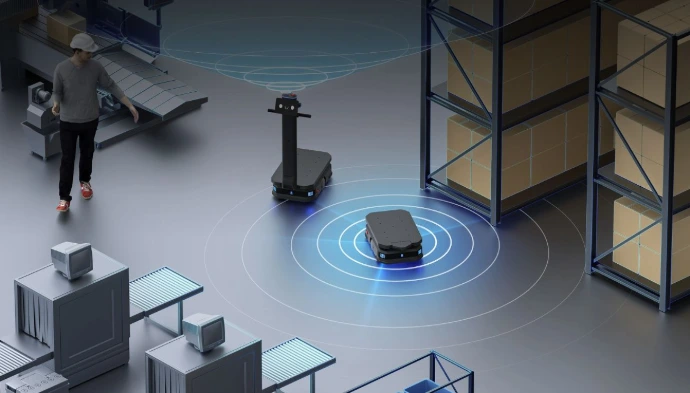

Flexible Deployment
The T600 series can quickly adapt to changes in production layouts without the need for time-consuming reconfiguration or facility modifications.

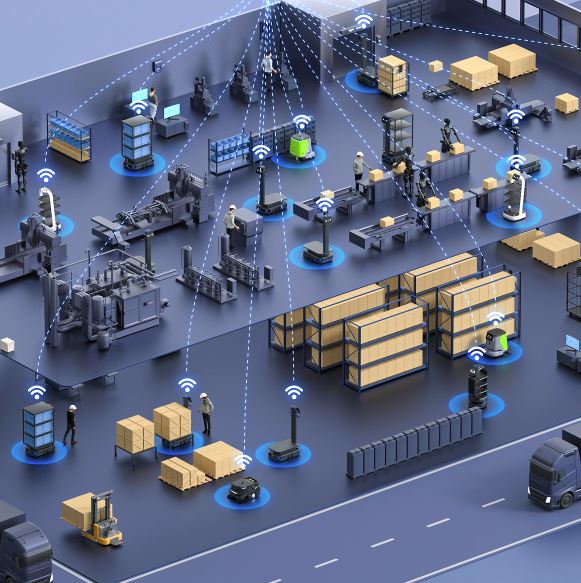

VDA5050 Protocol
Compatible with the VDA5050 standard communication protocol, enabling collaborative scheduling with other compliant robots and systems. No custom development or complex interface integration is required, allowing for rapid deployment of a unified, efficient, and scalable flexible logistics network.
On-premises Deployment
The system supports on-premises deployment to create a fully controlled and secure operating environment.

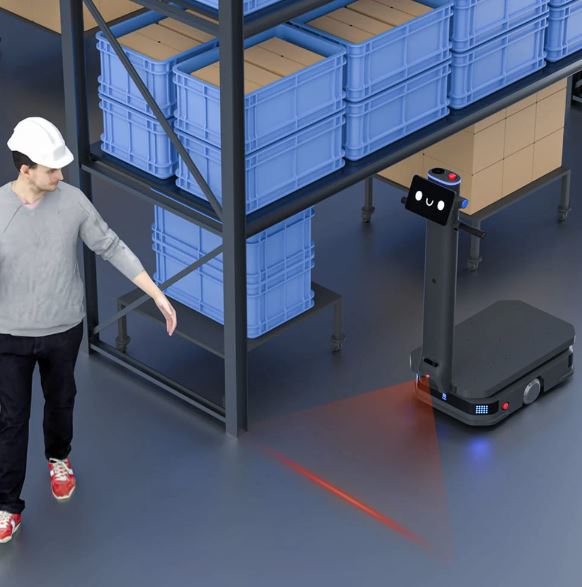

Ground Projection
Projects a linear warning mark in front of the T600 to indicate the travel area, creating a safe human-robot collaborative workspace.

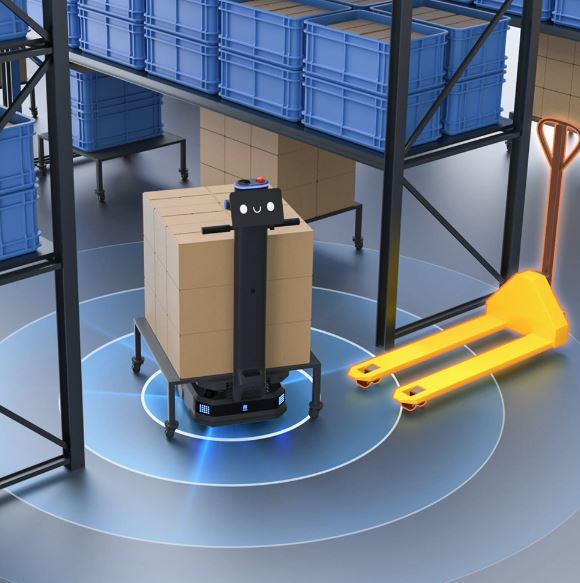

Dynamic Obstacle Avoidance
Autonomously detects low obstacles and flexibly navigates around them to ensure safe operation.

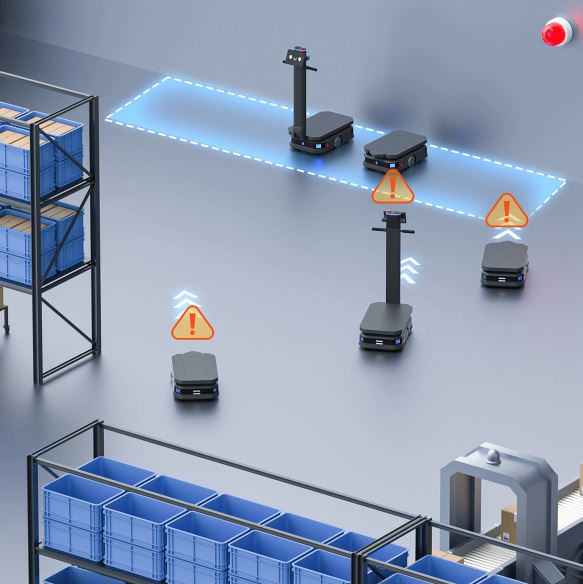

Disaster Avoidance Function
The PUDU T600 series is equipped with a dedicated disaster avoidance module that can intelligently receive signals such as fire alarms and earthquakes, and automatically execute avoidance plans: Autonomous navigation to a safe area. Intelligent judgment to stop and park at a safe location.

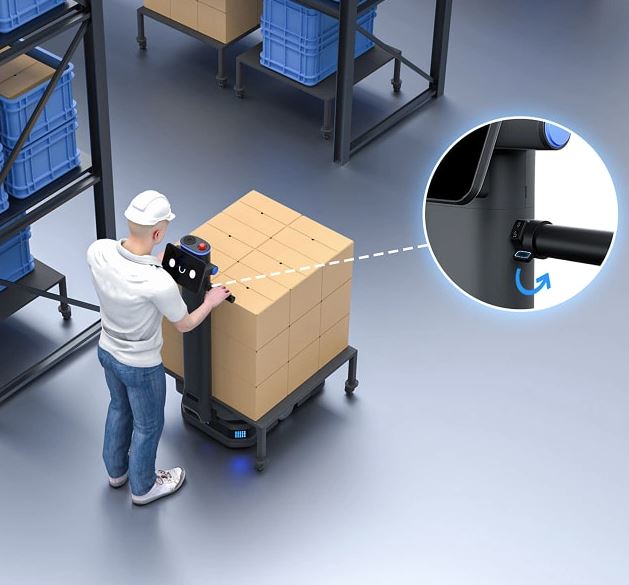

Handle Assist Switch
Equipped with an ergonomic handle assist switch, allowing the operator to easily control the T600 by simply pressing the switch, even when pushing heavy loads.

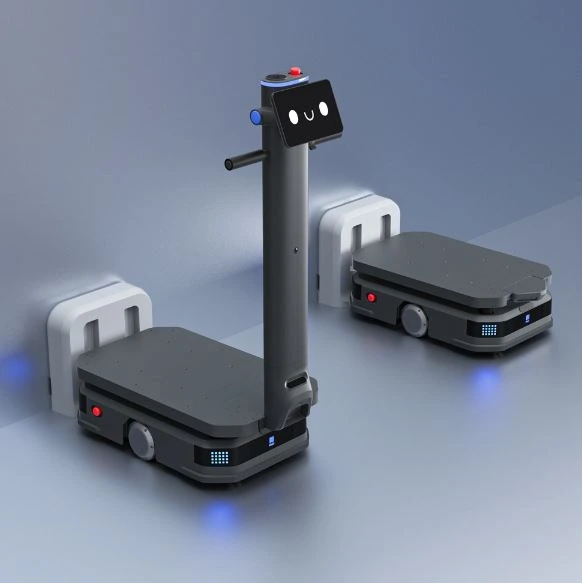

24/7 Non-stop Operations
The T600 series offers a 12-hour battery life and supports a fast 2-hour charging capability. Equipped with both automatic recharging and battery replacement options, it ensures uninterrupted service to fulfill round-the-clock operational requirements.
The PUDU T600 ๐๐๐ฅ๐ฅ๐๐ญ ๐๐ซ๐๐ง๐ฌ๐ฉ๐จ๐ซ๐ญ๐๐ญ๐ข๐จ๐ง ๐๐จ๐ฅ๐ฎ๐ญ๐ข๐จ๐ง is designed to take that load off human hands โ automating pallet movement with precision, safety, and speed. With its robust lifting mechanism, T600 can jack up and transport full pallets directly, creating a smoother and more efficient flow of goods. Its ๐ฅ๐ข๐๐ญ ๐๐จ๐ฅ๐ฎ๐ฆ๐ง ๐๐ฅ๐ฅ๐จ๐ฐ๐ฌ ๐๐ง ๐ ๐๐ฆ ๐๐จ๐ซ๐ฐ๐๐ซ๐โ๐๐๐๐ค๐ฐ๐๐ซ๐ ๐๐๐ฃ๐ฎ๐ฌ๐ญ๐ฆ๐๐ง๐ญ, enabling the robot to adapt to different pallet standards while keeping perfect balance and stability during every move. By automating the heavy, repetitive transport tasks, T600 helps businesses ๐ซ๐๐๐ฎ๐๐ ๐ฆ๐๐ง๐ฎ๐๐ฅ ๐ก๐๐ง๐๐ฅ๐ข๐ง๐ , ๐ข๐ฆ๐ฉ๐ซ๐จ๐ฏ๐ ๐ฐ๐จ๐ซ๐ค๐ฉ๐ฅ๐๐๐ ๐ฌ๐๐๐๐ญ๐ฒ, ๐๐ง๐ ๐ค๐๐๐ฉ ๐ฆ๐๐ญ๐๐ซ๐ข๐๐ฅ๐ฌ ๐ฆ๐จ๐ฏ๐ข๐ง๐ ๐๐๐๐ข๐๐ข๐๐ง๐ญ๐ฅ๐ฒ โ making smart automation the new backbone of industrial logistics.
Experience how the PUDU Mapping Tool revolutionizes deployment and maintenance:
- One-Robot Mapping: Build maps and set points effortlessly with one device.
- Large-Scale Capability: Map areas up to 50,000 mยฒ with ease.
- Remote Editing: Adjust maps remotely, saving on-site visits.
- Full Compatibility: Works flawlessly with all PUDU robots for uniform performance.
- Standard Interface: Intuitive, unified interface across all devices.
- Advanced Navigation: Utilize available paths for traffic flow and obstacle avoidance.
- Zone Activation: Easily activate robots in designated areas.
Technical Specifications
T600 | T600 Underride | |
Battery Capacity | 30 AH | 30 AH |
Charging Time | 2 H (from 0% to 90%) | 2 H (from 0% to 90%) |
Run-time | 12 H (none load) | 12 H (none load) |
Maximum load | 600 KG(1322 lbs) | 600 KG(1322 lbs) |
Weight | 112 KG(247 lbs) | 94 KG(208 lbs) |
Dimensions | 960 mm * 500 mm * 1350 mm (37.8 in * 19.7 in * 53.1 in) | 845 mm * 500 mm * 255 mm(33.3 in * 19.7 in * 10.0 in) |
Navigation | VSLAM + LiDAR SLAM | LiDAR SLAM only |
Cruising Speed | 0.2~1.2 m/s(0.67~3.94 ft/s) | 0.2~1.2 m/s(0.67~3.94 ft/s) |
Min. Path Clearance | 70 cm (27.56 in) | 65 cm(25.6 in) |
Max. surmountable height | 10 mm(0.39 in) | 10mm(0.39 in) |
Max. surmountable gap | 35 mm(1.38 in) | 35 mm(1.38 in) |
Operating Environment | 0ยฐC ~ 40ยฐC(32ยฐF ~ 104ยฐF) | 0ยฐC ~ 40ยฐC(32ยฐF ~ 104ยฐF) |
